YZ型双梁铸造桥式起重机是我公司主要生产的产品之一，具体详细参数如下：

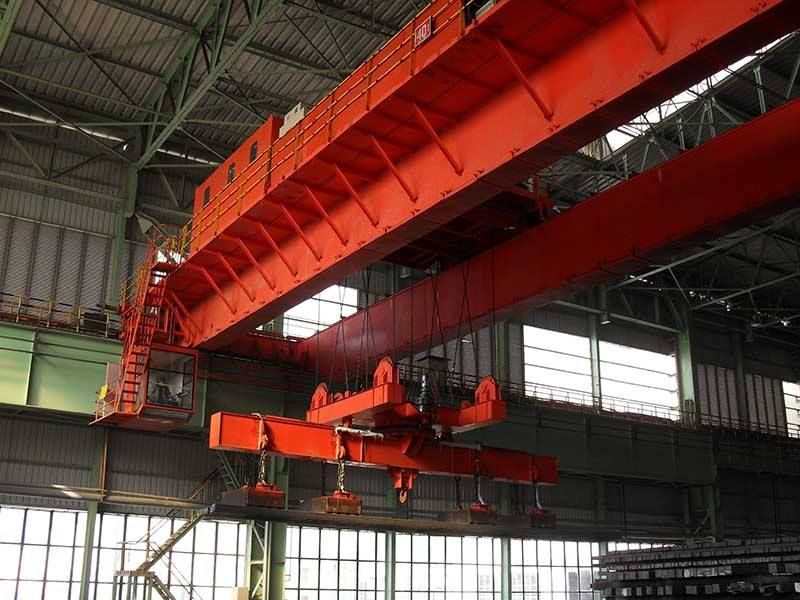

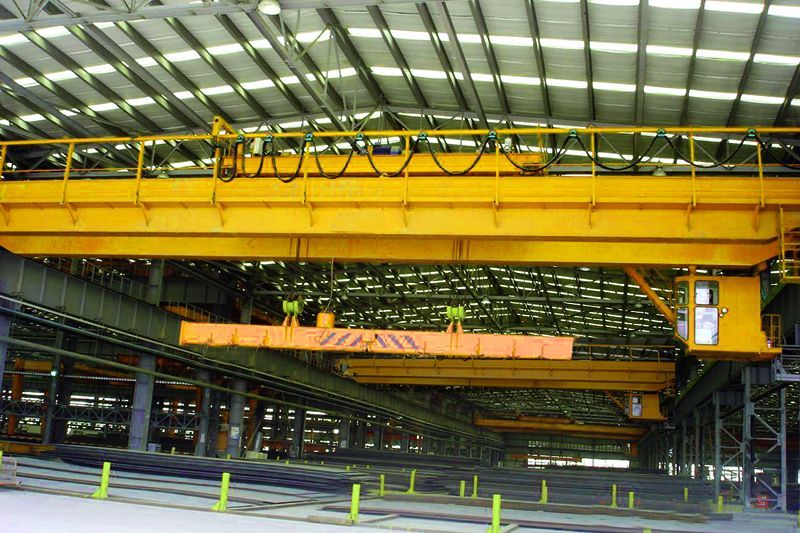

本起重机带有可旋转、又可伸缩的电磁挂梁，用于钢厂、船厂、港口、堆场和仓储等室内或露天的固定跨间，装卸及搬运钢板、型钢、盘卷等物料。特别适用于吊运不同规格且需水平旋转的场合，能够根据所吊物料的规格(不同厚度、长度、张数等)和重量，电动调整电磁铁间距及无级调节电磁铁磁力。根据用户要求可提供：各机构的调速(1：10或更大)、超载及报警、遥控、PLC控制及故障检测、显示、记录和打印系统等。  (以下参数为室内用)The crane has slewing telescopic electromagnetic carrier-beam；is applicable to the fixed span at indoors or outdoors of steel mill，shipyard，port，yard and storage，etc．It is used for loading，unlo ading and carrying steel plate，profile steel，and spool．etc．It is especially applica ble to lift material of different specifications and which needs horizontal rotation．The  spacing of electromag net can be adiusted electrically and magnetic force of electromagnet can be adjusted through infinitely variable control according to the specifications(different thickness，length and pieces，etc.）and weight of the lifted material．The followings can be supplied according to the user’s requirements：speed governing(1：10 or larger)of the mechanisms，overload&warning，remote control，PLC control，failure de tection，display，record and printing system，etc．(the data below is used for indoor)．

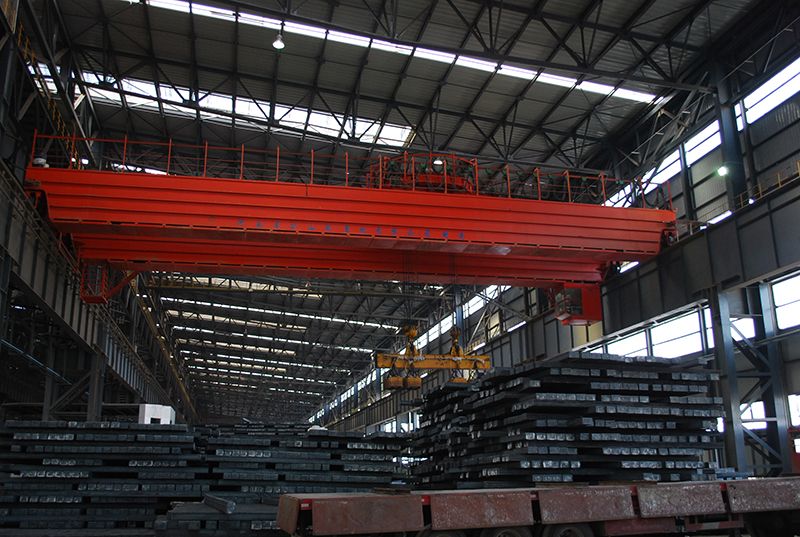

本起重机带有可旋转挂梁，适用于钢厂、堆场和仓储等室内或露天的固定跨间，装卸及搬运钢板、型钢、盘卷等物料。特别适用于吊运不同规格且需水平旋转的场合。挂梁下可以携带电磁吸盘、夹钳等专用吊具。   The crane has slewing carrier-beam；is applicable to the fixed span at indoors or outdoors of stee1mil1．yard and storage，etc．It is used for loading，unloading  and carrying stee1 plate，profile steel，and spool，etc．It is especially applicable to lift materia1 of different peifications and which needs horizontal rotation．The lower part of the carriler—beam can bring special lifting appliances,such as magnetic chuck and tongs，etc．注：1、进入司机室的走台方式分为：端入、侧入、顶入。2、起重量包含挂梁及专用吊具自重；3、挂梁***大旋转角度可按用户要求；4、以上所有数据为室内使用时；5、参数表中起重机总功率为行车本体功率，不含专用吊具功率。Note：1．The modes entering cab：form the end：form the side；form the top。2．The lifting  weight includes deadweight of the carrier—beam and special lifting applicnces；3．The max.rotating angle of the carrier—beam can be made as the user asks；4．All above-mentioned data is for being used indoors；5. The total power of the crane in the parameter list is the power of the travelling crane，but excludes    the power ofspecial lifting appliances.

注：1、进入司机室的走台入口方式分为：端入、侧入、顶入。2、起重量包括挂梁重量。3、起重机总重不包括挂梁重量。4、挂梁上下吊点距C、D可根据用户要求确定，表中尺寸仅供参考。Note：1．The direction of platform door to the driver，s cap is side，end and top．2．The lifting capacity includes the weight of the carrier-beam．3．The total weight does’t include the weight of the carrier-beam．4．The value of C and D are depended on the requirements

桥式起重机是现代工业生产和起重运输中实现生产过程机械化、自动化的重要工具和设备。 所以桥式起重机在室内外工矿企业、钢铁化工、铁路交通、港口码头以及物流周转等部门和场所均得到广泛的运用。

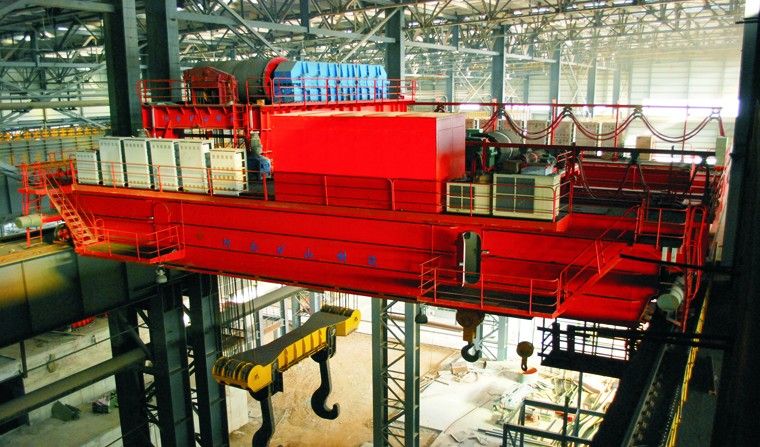

　　QDY吊钩桥式铸造起重机主要用于吊运熔融金属的冶金、铸造等场所，整机工作级别为A7，在主梁底部加设隔热层装置。起重机装配与试验符合国家质量监督检验检疫总局所发的质检办特[2007]375号文件。其它吊运熔融的非金属物料和吊运炽热固态金属的场所也可参照选用。(注：以下图中H0为大车缓冲器增加的高度。H0≤250)环境条件：　　1、起重机的电源为三相交流，额定频率为50HZ，额定电压为380V；　　2、工作环境温度为-10~+60℃；　　3、在+40℃的温度下相对湿度不超过50％；　　4、如超过上述要求，根据用户需要按订货合同条款执行。订货须知：　　用户在定货或签订合同时，必须将本机的基本参数(额定起重量、起升高度、跨度等)描述清楚，以便提供满足工况要求和工作条件的产品。
